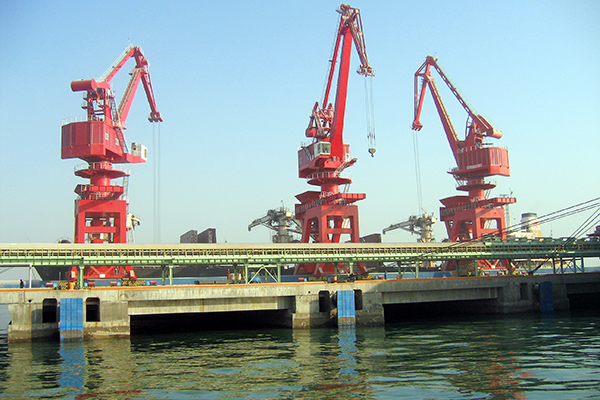

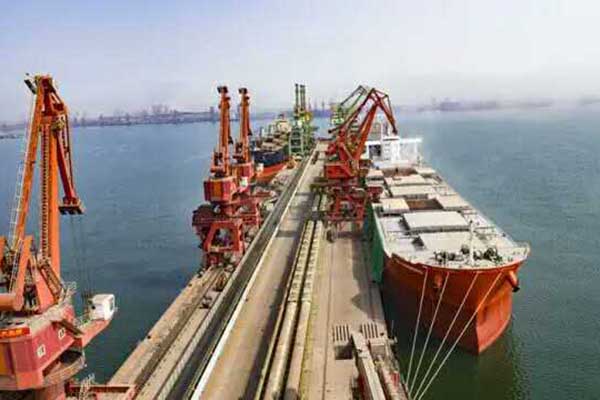

Idler Belt Conveyor Back
DTII、DTII(A)、TD75、DJ type Idler belt conveyor ,belt conveyor is a kind of friction driven machinery that transports materials in a continuous way.It is mainly composed of frame, conveyor belt, idler, roller, tensioning device, transmission device, et
1、 Belt conveyor is the most ideal advanced continuous transportation equipment
2、 Long transportation distance, large transportation volume and continuous transportation.
3、 Reliable operation, easy to realize automation and centralized control
Product parameter
Section Form | V （M / sec） | B（mm） | |||||
500 | 650 | 800 | 1000 | 1200 | 1400 | ||
Q （Tons / hour）② | |||||||
Flute Profile | 0.8 1.0 1.25 1.6 2.0 2.5 3.15 4.0 | 78 97 122 156 191 232 - - | 131 164 206 264 323 391 - - | - 278 348 445 546 661 824 - | - 435 544 696 1033 1233 - | - 655 819 1048 1284 1556 1858 2202 | - 891 1115 1427 1748 2118 2528 2996 |
Pincher | 0.8 1.0 1.25 1.6 2.0 2.5 | 41 52 66 84 103 125 | 67 88 110 142 174 211 | 118 147 184 236 289 350 | - 230 288 368 451 546 | - 345 432 553 677 821 | - 469 588 753 922 1117 |
Cooperative partner
Application fields
It can be widely used in household appliances, electronics, electrical appliances, machinery, tobacco, molding, post and telecommunications, printing, food and so on all walks of life, object assembly, testing, debugging, packaging and transportation, etc.
